OUTDOOR Drains

Two types of outdoor drainage products are offered

PROTrench is an architectural trench drain system for residential and commercial applications. Comprises of a hexadrain lower channel with an architectural Wedge Wire grate suitable for pedestrian/light vehicle traffic applications such as: Pools, Driveways, Patios, Walkways, and Basements

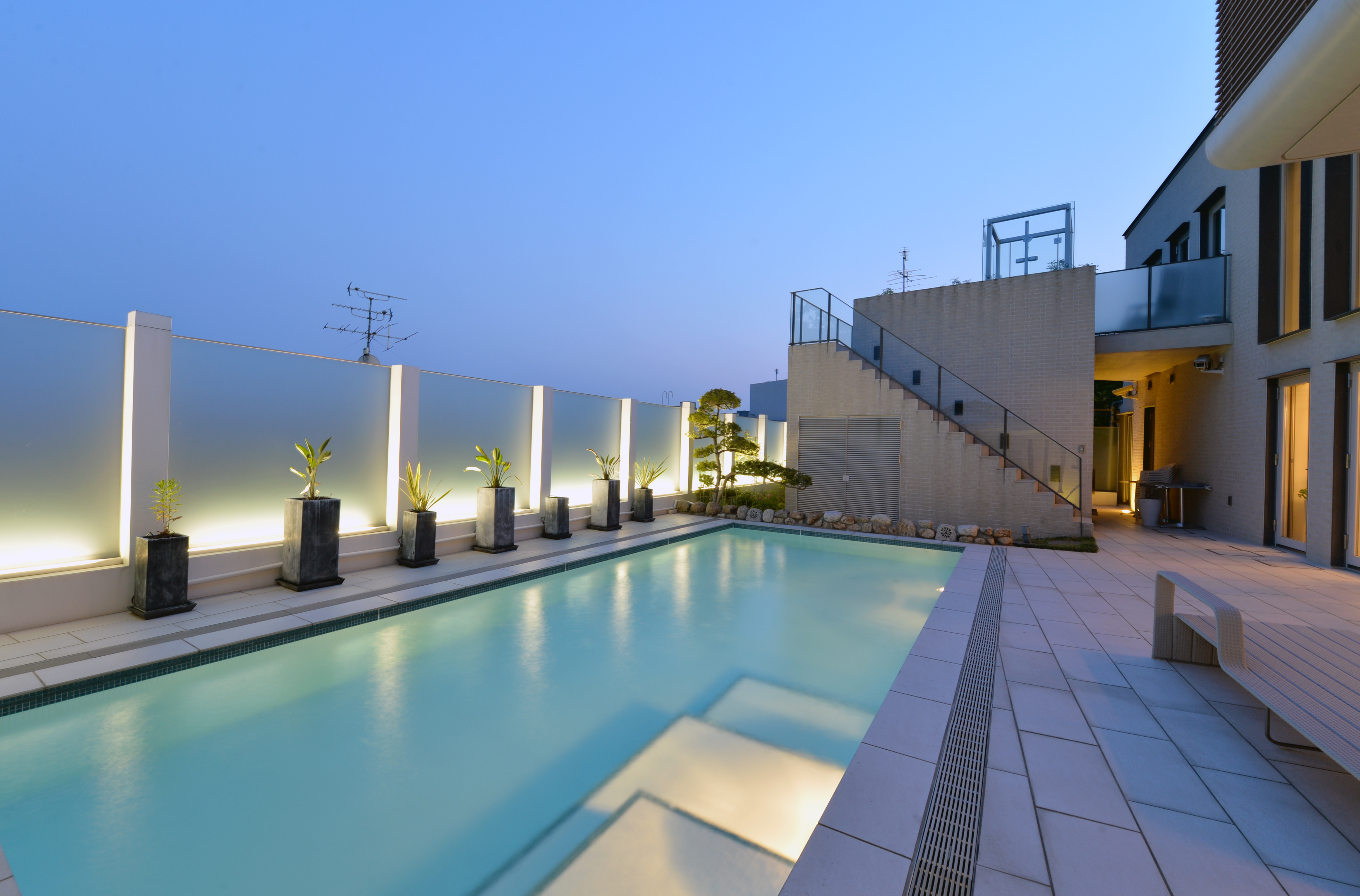

Platinum Grate is a completely custom architectural grating system that allows you to specify its length, width and height. It is constructed out of Wedge Wire which is perfectly flat with a satin smooth surface making it bare foot safe and Heel guard compliant. Its great strength, precision and a long service life lend it to a wide range of architectural situations such as floor grates to cover water run-off from drains in places such as driveways, car parks, in-door/out-door living spaces, commercial bathrooms, pools even bar tops.

OUTDOOR Drains

Two types of outdoor drainage products are offered

PROTrench is an architectural trench drain system for residential and commercial applications. Comprises of a hexadrain lower channel with an architectural Wedge Wire grate suitable for pedestrian/light vehicle traffic applications such as: Pools, Driveways, Patios, Walkways, and Basements

Platinum Grate is a completely custom architectural grating system that allows you to specify its length, width and height. It is constructed out of Wedge Wire which is perfectly flat with a satin smooth surface making it bare foot safe and Heel guard compliant. Its great strength, precision and a long service life lend it to a wide range of architectural situations such as floor grates to cover water run-off from drains in places such as driveways, car parks, in-door/out-door living spaces, commercial bathrooms, pools even bar tops.

  • Lower Channel and Grate Top
    Lower Channel and Grate Top
  • Lower Channel
    Lower Channel
  • Lower Channel Material
    Lower Channel Material
  • Grate Top
    Grate Top
  • Grate Top Material
    Grate Top Material
  • Grate Top Open Area
    Grate Top Open Area
  • Length
    Length
  • Width
    Width
  • Depth
    Depth
  • Waste Line Connection
    Waste Line Connection
  • Accessories
    Accessories

PROTrench

  • Lower Channel and Grate Top
    Complete system both included
  • Lower Channel
    Included
  • Lower Channel Material
    ABS
  • Grate Top
    Wedge Wire
  • Grate Top Material
    304 stainless steel
  • Grate Top Open Area
    61.5%
  • Length
    1m (39.4)" sections , click fit to make any length
  • Width
    5"
  • Depth
    3"
  • Waste Line Connection
    3” & 4” sewer/drain pipe or 4” schedule 40
  • Accessories
    End Caps, Leaf Guard, Outlet Connector

Platinum Grate

  • Lower Channel and Grate Top
    Only custom grate top
  • Lower Channel
    -
  • Lower Channel Material
    -
  • Grate Top
    Wedge Wire
  • Grate Top Material
    304 stainless steel
  • Grate Top Open Area
    61.5%
  • Length
    Custom
  • Width
    Custom
  • Depth
    1/2", 3/4", 1"
  • Waste Line Connection
    -
  • Accessories
    -
